AC Voltage Detector
AC Voltage Detector with Relay for use with E-2D, E-5D, and E-16D environment monitoring systems.
- Measurement range: detects mains voltage from 50 to 250 VAC.
- Measurement indication: Alarm or Normal.
- Sensor type: open/closed contact switch.
- Includes internal relay.
- Maximum close voltage: 90VAC @ 60Hz, 108VAC @ 50Hz
- Minimum open voltage: 10VAC @ 60Hz, 12VAC @ 50Hz
- Includes 6-foot (1.8-meter) 2-wire cable to connect to the ENVIROMUX system.
- E-ACVDRLY-515: Standard US 120V 10A NEMA 5-15 plug on attached 5.5-foot (1.67-meter) cord.
- E-ACVDRLY-C14: Universal 250V IEC C14 socket on attached 6-inch (0.15-meter) cord.
- Maximum switching current: 500mA
- Maximum hold-off voltage: 250VDC
- Galvanic isolation: 1.5kVDC/peak AC
- Operating temperature: 32 to 140°F (0 to 60°C).
- Storage temperature: 32 to 158°F (0 to 70°C).
- Operating and Storage Relative Humidity: 17 to 90% non-condensing RH.
- MTBF: 3,539,338 hrs
- Regulatory approvals: CE, RoHS

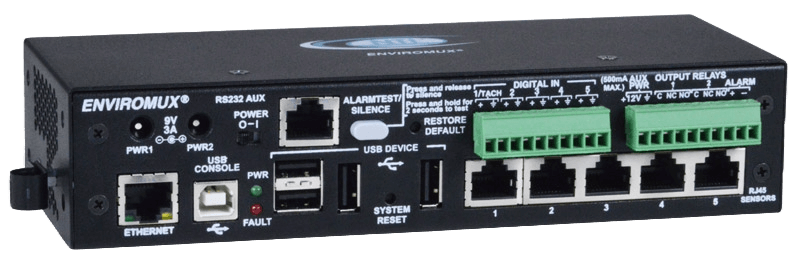

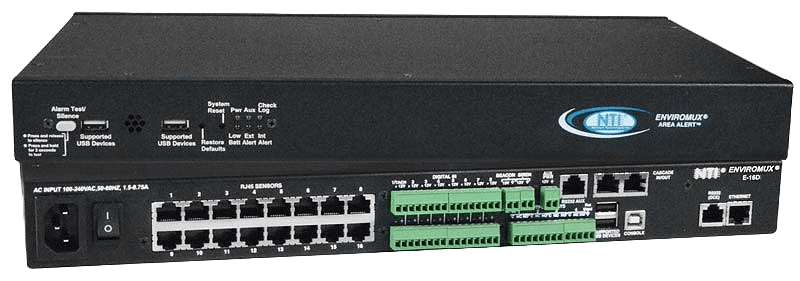

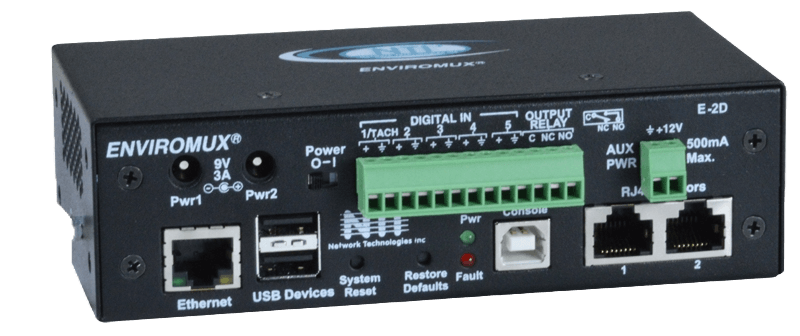

- Compatible with E-2D/5D/16D.
